Specification sheet for Emit part 2

Sensitivity:

86dB (2.83V/1m)

IEC power handling:

160 watt

Impedance:

6 Ω

Frequency response (± 3 dB):

53Hz - 25kHz (-6 dB 42 Hz - 35 Khz)

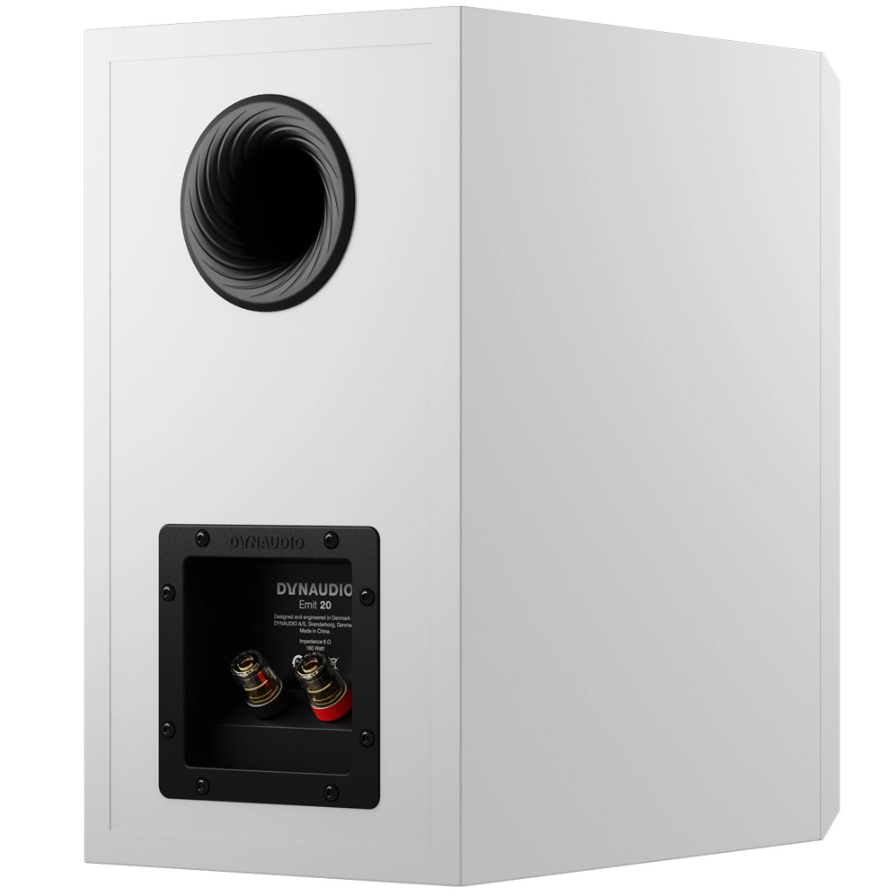

Box principle:

Bass reflex rear double flared port

Crossover:

2-way

Crossover frequency:

3800 Hz

Crossover topology:

1ST order tweeter / 2nd order woofe

Specification sheet for Emit part 1

Midrange / Woofer:

18 cm MSP

Tweeter:

Cerotar soft dome with Hexis

Weight:

10.32 kg / 22.8 lb

Dimensions (W x H x D):

205,1 X 370 X 311,5 mm

8.1 X 14.6 X 12.3 in

Dimensions with feet/grille (W x H x D):

205,1 X 370 X 324,5 mm

8.1 X 14.6 X 12.8 in
