The Alpha 65 performs just as well with instrumental music as with electronic music, and is characterised by its great versatility.

This model is composed of a 6.5” (16.5cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port associated to a 70W amplifier and of a 1" (25mm) aluminum inverted dome tweeter (35W amplifier). Alpha 65 has a frequency response of 40Hz to 22kHz (+/- 3dB).

Key points

• Low directivity: keeps the same sound throughout the room

• Damping and rigidity: neutrality, no distortion

• Tonal balance is identical at low and high volumes; low sensitivity to the wall effects

• Connect up to 2 audio sources

• Optimal acoustic integration

• Reduced power consumption

Type Monitoring Alpha 65

Frequency response

(+/- 3dB) 40Hz - 22kHz

Power 105W (70W+35W)

Maximum SPL 106dB SPL (pic @ 1m)

Electronic section

Inputs

Connectors

XLR balanced 10kOhms

RCA unbalanced 10kOhms

with sensitivity compensation

LF amplifier stage 70W, class AB

HF amplifier stage 35W, class AB

Standby mode

Standby

Activation of the monitor

After about 30 minutes

without using the monitor

By signal detection >3 mV

Power supply

(The voltage can not be

modified)

220-240V

(fuse T800mAL/250V)

or 100-120V

(fuse T1.6AL/250V)

Connection IEC inlet and detachable power cord

Aluminium inverted

dome tweeter

6.5" (16.5 cm)

Polyglass cone

Large front

port

2 constantly active

XLR and RCA inputs

Adjustable bass

and treble levels

Automatic

standby mode

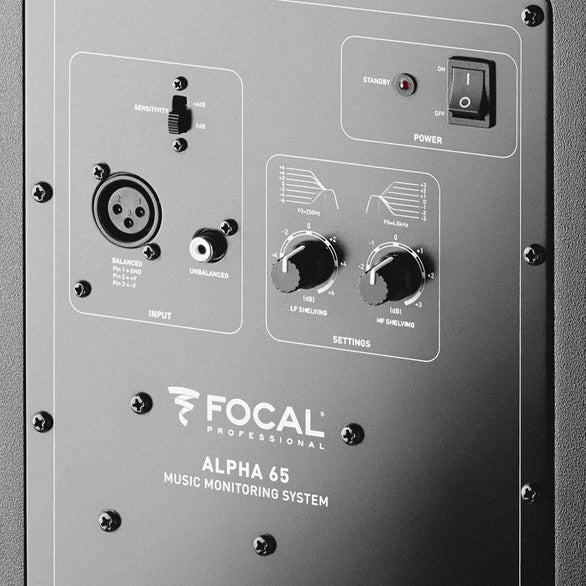

User controls

Sensitivity Adjustable, 0 or +6dB

LF shelving (0 - 300Hz) Adjustable, +/-6dB

HF shelving (4.5 - 22kHz) Adjustable, +/-3dB

Power ON/OFF Switch on rear panel

Standby mode

power consumption < 0,5W

Indicators Power ON/OFF LED - Standby LED

Transducers

Woofer 6.5" (16.5cm) drive unit - Polyglass cone

Tweeter 1" (25mm) drive unit

Aluminium inverted dome

Cabinet

Construction 0.6" (15mm) MDF

Finish Vinyl and Black painting

Dimensions

with 4 rubber pads (HxWxD) 13.7x9.9x12.2" (348 x 252 x 309mm)

Weight 20.7lb (9.4kg)
