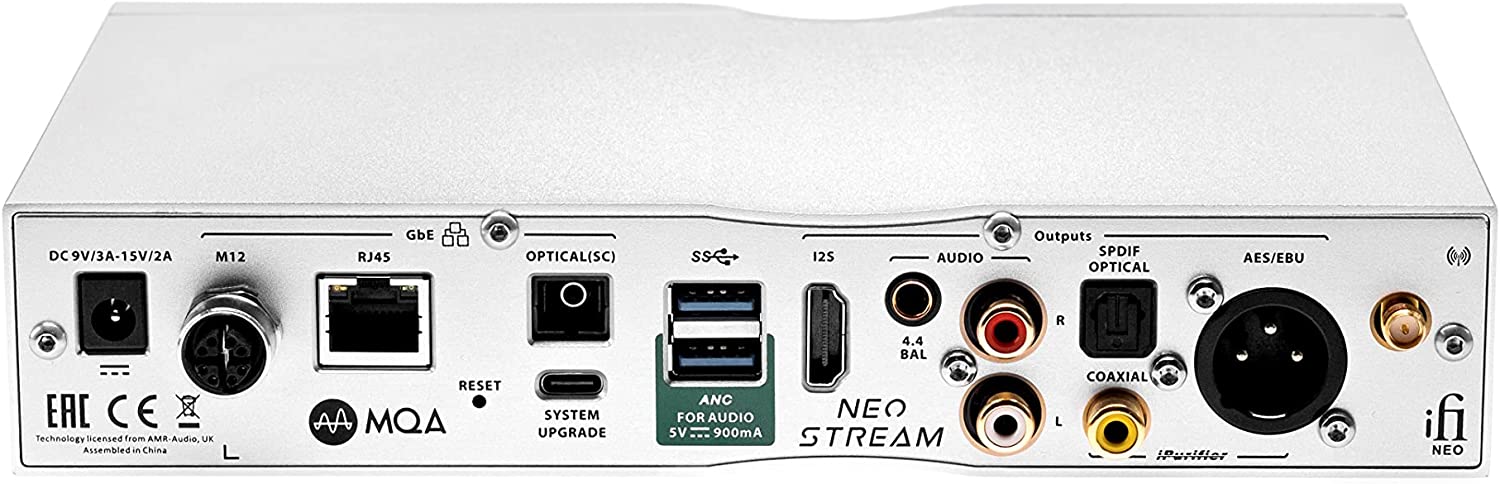

| Inputs | Wi-Fi Ethernet (M12 X-code 8-pin/RJ45/Optical) USB-A and USB-C (front panel) (USB DISK, HDD etc.) |
| Formats | DSD: up to 512 / 22.6MHz PCM: up to 768kHz MQA: Full Decoder |
| Analogue output | Balanced 4.4mm 4V RMS / UnBAL RCA 2V RMS |
| Digital output | USB-C (front panel) USB3.0 Type-A Socket x2 (USB2.0 compatible) S/PDIF Optical (PCM up to 192kHz, 24-bit) S/PDIF Coaxial (PCM up to 192kHz, 24-bit) AES/EBU (XLR - single link, PCM up to 192kHz) I2S via HDMI connector Pinout: 1) Data - 2) Gnd 3) Data + 4) Bck + 5) Gnd 6) Bck 7) Wck - 8) Gnd 9) Wck + 10) Mck + 11) Gnd 12) Mck 13,14,15,16) DSD Enable; L=PCM, H=DSD 17) Gnd 18) 5V Power Enable Output; L=O, H=On 19) N/C 20,21,22,23) GND |
| Output Impedance | Balanced: ≤74Ω UnBAL: ≤37Ω |
| SNR | <-106dB(A) @ 0dBFS (BAL/UnBAL) |
| THD + N | <0.0025% @ 0dBFS (BAL/UnBAL) |
| Power supply requirement | DC 9V/2.0A, 12V/1.8A, 15V/1.2A* (centre pin +) |
| Power consumption | <0.5W idle, 14W max. |
| Dimensions | 214 x 151 x 41 mm (8.4" x 5.9" x 1.6") |
| Net weight | 1.0 kg (2.26 Ibs) |
| Limited Warranty | 12 months** |
| *A power supply unit must be able to deliver minimum rated repetitive current **12 months typical or as permitted/required by local reseller laws. ***Specifations are subject to change without notice. |
