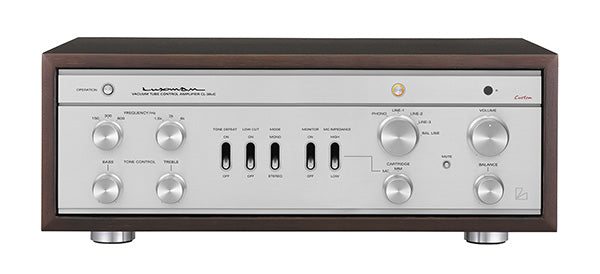

Preamplificatore stereo Hi-End equipaggiato con valvole Slovakia JJ Electronics ECC803 e ECC802, 4 ingressi di linea, 1 ingresso Phono MM/MC, 2 uscite pre out, 1 uscita Tape, controllo toni, telecomando, dimensioni (WxHxD) 440x169x307mm, peso 13,3 kg. Finitura Silver/Legno

Spec

Input sensitivity/

input impedance PHONO (MM): 2.0mV/47kΩ

PHONO (MC high): 0.3mV/100Ω

PHONO (MC low): 0.08mV/30Ω

LINE: 190mV/50kΩ

BAL.LINE: 190mV/20kΩ *2

Output/output impedance Rated 1V/300Ω

Frequency response PHONO: 20Hz to 20kHz (±0.5dB)

LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)

Total harmonic distortion 0.006% or less (1kHz)

0.06% or less (20Hz to 20kHz)

S/N ratio (IHF-A) PHONO (MM): 68dB or more

PHONO (MC high): 63dB or more

PHONO (MC low): 60dB or more

LINE/BAL.LINE: 100dB or more

Tone control ±8dB, selectable frequency range

BASS: 150/300/600Hz,

TREBLE: 1.5k/3k/6kHz

Low cut 30Hz(-6dB/oct.)

Circuit SRPP

Vacuum tubes ECC83S×3, ECC82×5

Power supply 230V~(50Hz)/115V~(60Hz)

Power consumption 35W

External dimensions 440(W) x 169(H) x 307(D) mm

19mm front panel knob of and 12mm rear panel

terminals are included in the depth measurement

Net weight 13.3kg (main unit)

Accessories Remote control (RA-19), Power cable
