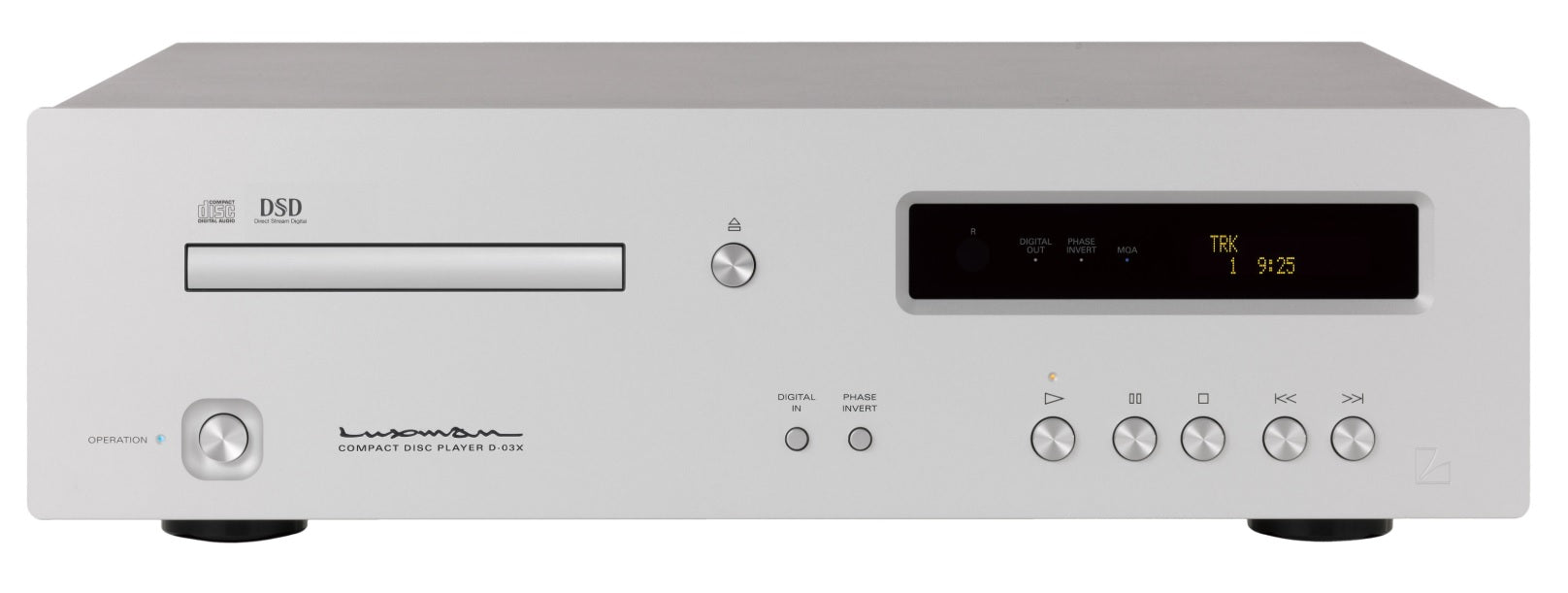

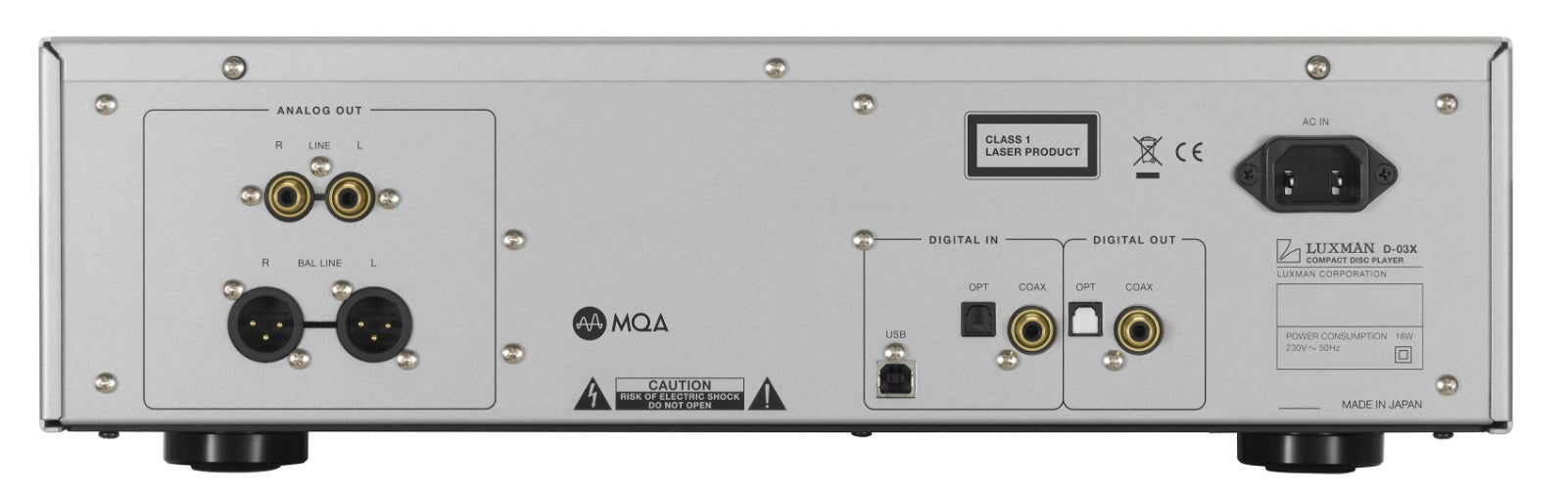

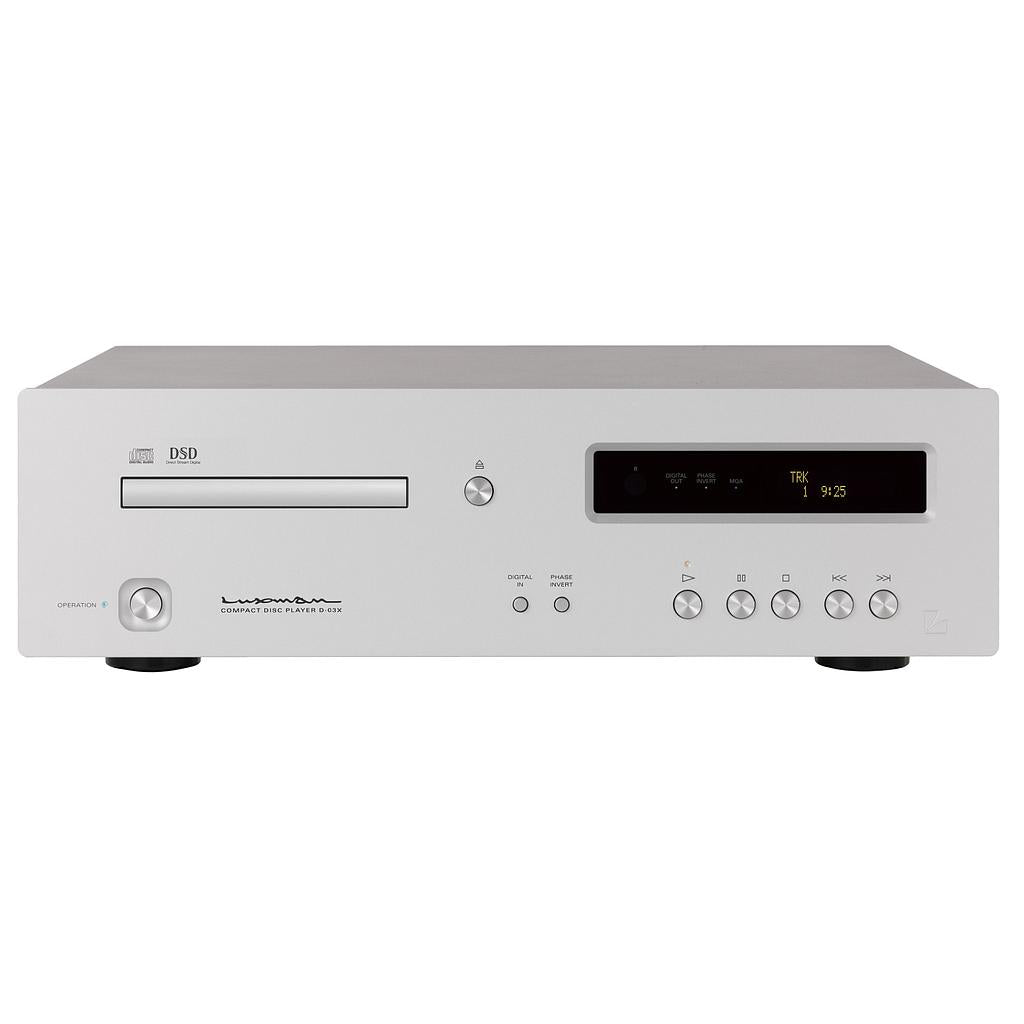

Lettore di CD a due canali con decofica MQA, doppi convertitori Burr Brown 1795, nuova meccanica, ingresso USB per files HiRes PCM fino a 384kHz/32bit e DSD 11.28MHz, uscita analogica XLR e RCA, uscita digitale ottica e coassiale, ingresso digitale coassiale e digitale ottico, dimensioni (WxHxD) 440x133x410mm, peso 13.2 kg. Finitura Silver

Spec

Supported discs CD (CD-R, CD-RW, MQA-CD)

Supported sampling

frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz,

352.8 kHz, 384 kHz (16, 24, 32-bit)

USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz (1-bit)

Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,

192 kHz (16, 20, 24-bit)

Analog output

voltage / impedance Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω, DSD : 1.7 V

Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)

Coaxial / Optical : 5 Hz to 47 kHz (+0, -3.0 dB)

USB : 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion CD : 0.003 %, Coaxial / Optical : 0.002 %, USB : 0.002 %

S/N ratio (IHF-A) CD : 101 dB, Coaxial / Optical : 114 dB, USB : 113 dB

D/A converter Texas Instruments PCM1795 (monaural mode) x 2

Power supply 230 V～(50 Hz) / 115 V～ (60 Hz)

Power consumption 18W

Dimensions 440(W) x 133(H) x 410(D) mm

front side knob of 2 mm and rear side terminal of 8 mm included in depth

Net weight 13.2 kg

Accessories Remote control (RD-28), Power cable
