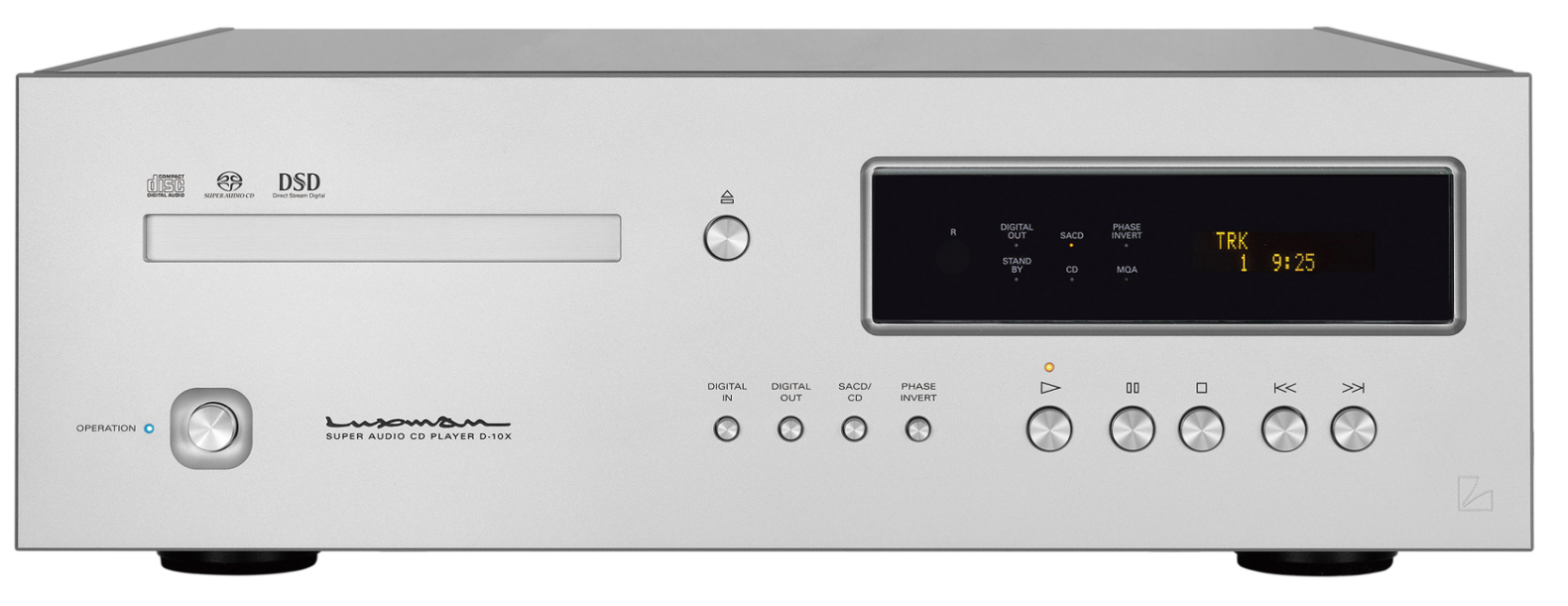

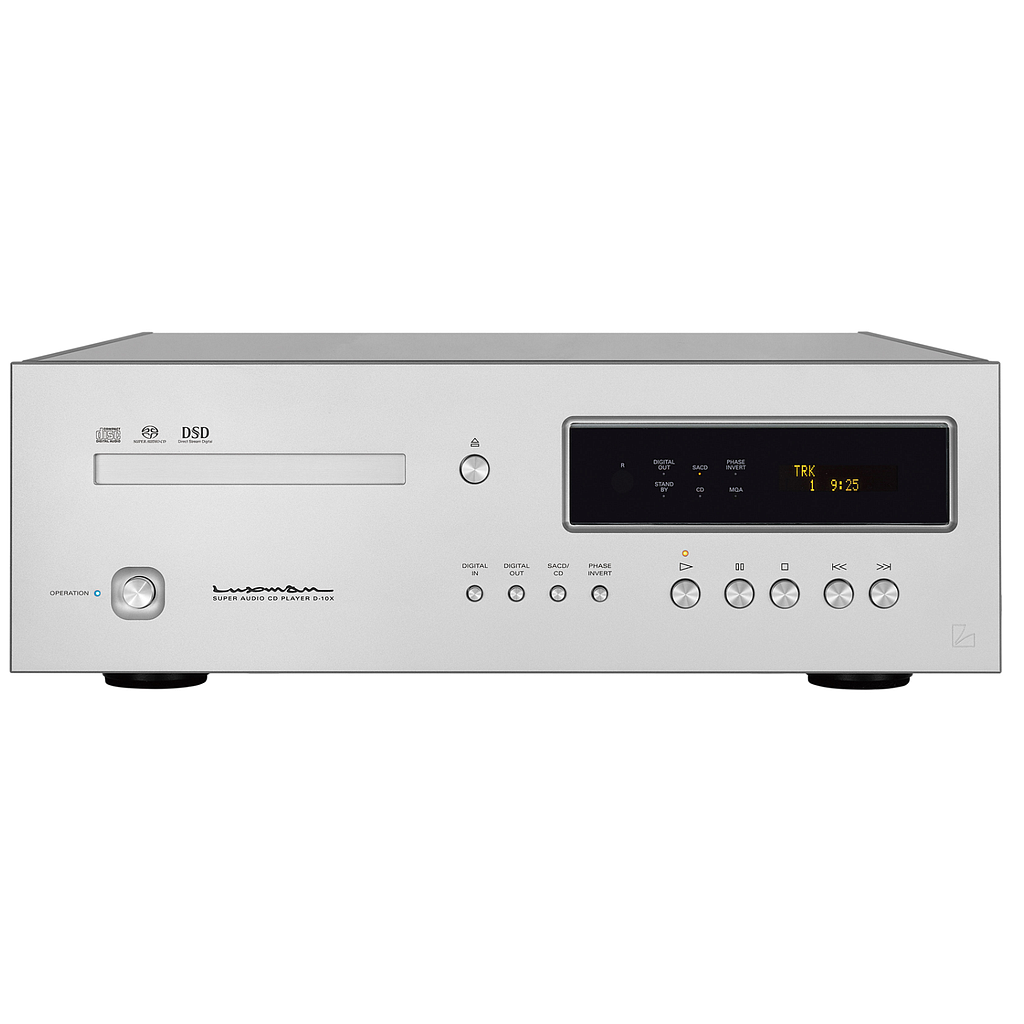

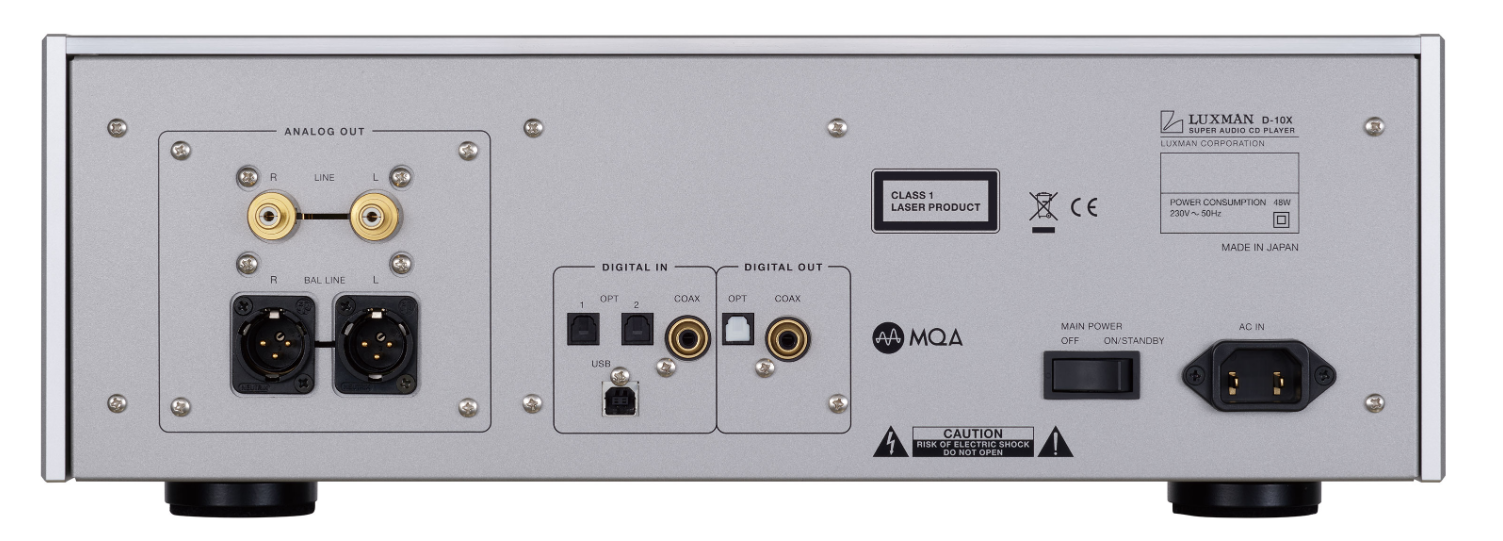

Lettore CD e SACD stereo con decodifica MQA, nuovi convertitori RHOM BD3430EKV, nuova meccanica di lettura LxTDM-i, nuovo circuito analogico bilanciato ODNF-u, ingresso USB per files HiRes PCM fino a 768kHz/32bit, DSD fino a 22.1 MHz, uscita analogica bilanciata XLR e RCA, 2 ingressi digitale ottici, ingresso digitale coassiale e digitale ottico, dimensioni (WxHxD) 440x154x418mm, peso 22,4 kg. Finitura Silver

Supported discs SACD, CD (CD-R, CD-RW, MQA-CD)

Supported sampling

frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz,

705.6 kHz, 768 kHz (16, 24, 32-bit)

USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)

Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)

Analog output

voltage / impedance Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω

For SACD / DSD : 1.3 V

Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)

SACD : 5 Hz to 38 kHz (+0, -3.0 dB)

USB : 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion CD : 0.0018 %, SACD : 0.001 %, USB : 0.0015 %

S/N ratio (IHF-A) CD : 125 dB, SACD : 121 dB, USB : 125 dB

D/A converter ROHM BD34301EKV (monaural mode) x 2

Power supply 230 V～(50 Hz) / 115 V～ (60 Hz)

Power consumption 48W

Dimensions 440(W) x 154(H) x 418(D) mm

front side knob of 2 mm and rear side terminal of 13 mm included in depth

Net weight 22.4 kg

Accessories Remote control (RD-29), Power cable

*1 Pressing the phase invert button allows balance output terminal No.2 to change HOT, and No.3 to COLD.

Bulk Pet is a registered trademark of Interface Co., Ltd.

MUS-IC is a registered trademark of ROHM Co., Ltd.

Apple, Mac, Mac OS, OS X, macOS and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.

Microsoft and Windows are registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Sound Wave Logo is a registered trademark of MQA Limited. (c) 2018. MQA is a registered trademark of MQA Limited. (c) 2018. MQA-CD is a registered trademark of MQA Limited. (c) 2017.

*The described company names and product names are trademarks or registered trademarks of each company.
