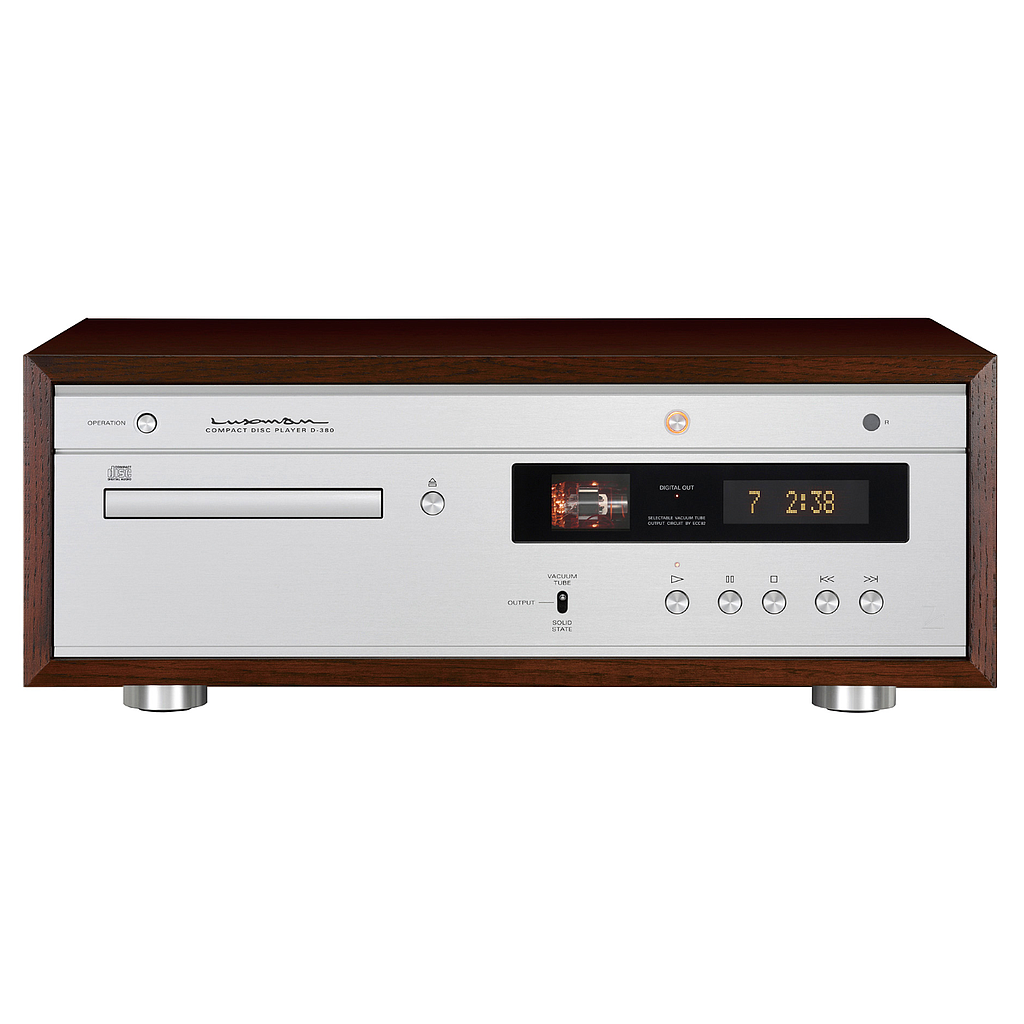

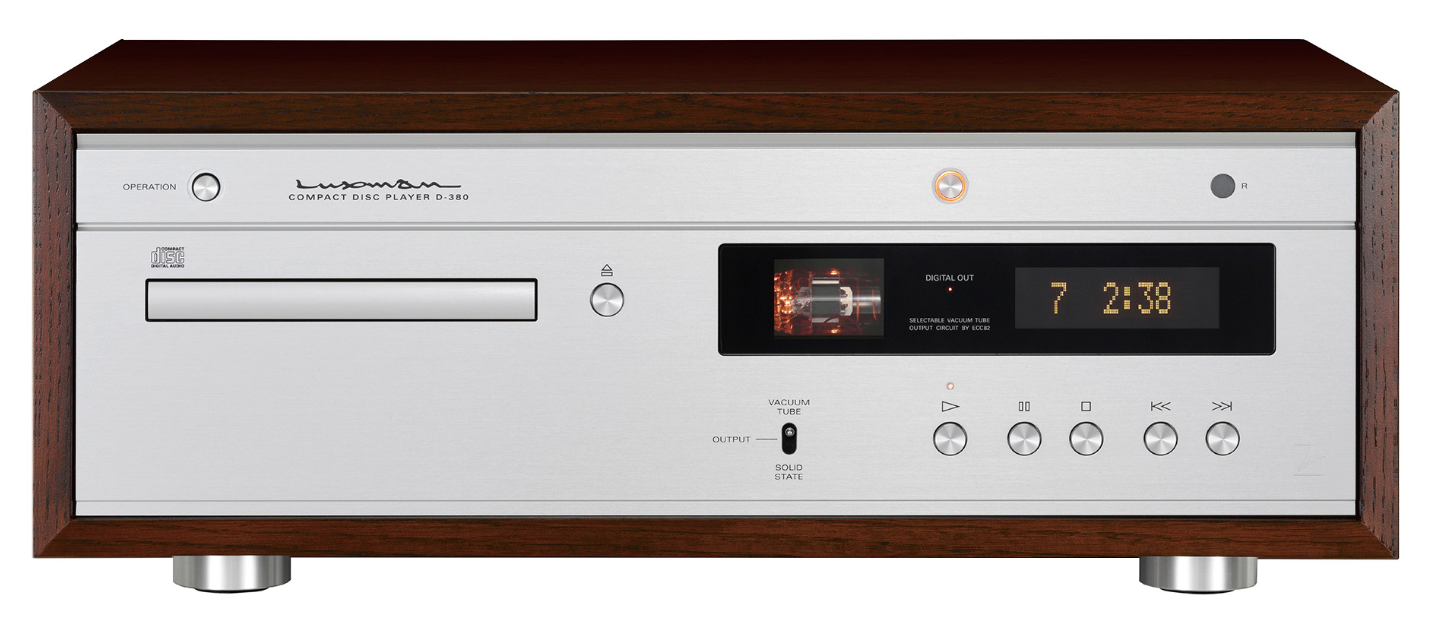

Lettore di CD stereo con stadio di uscita a valvola ECC 82 uscita commutabile valvolare/transistor, convertitore D/A TI PCM 5201A 192kHz/32bit uscite analogiche RCA, uscita digitale ottica, uscita digitale coassiale dimensioni (WxHxD) 440x167x286mm, peso 10,8 kg. Finitura Silver

Spec

Applicable disc 2channel CD

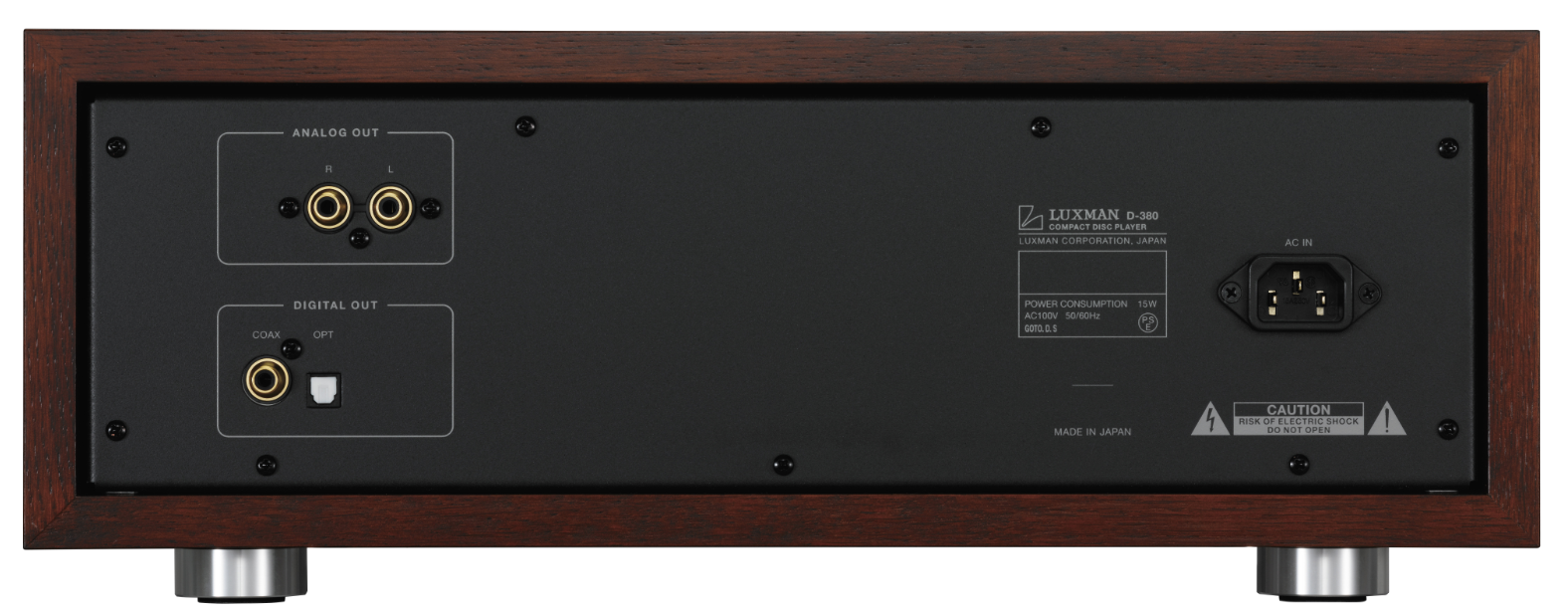

Analog output Unbalanced x 1

Digital output Coaxial x 1, Optical x 1

Output voltage SOLID STATE: 2.1V, VACUUM TUBE: 2.4V

Output impedance 300Ω

Frequency response SOLID STATE: 20Hz to 20kHz (+0, -0.2dB)

VACUUM TUBE: 20Hz to 20kHz (+0.1, -0.3dB)

Total harmonic distortion SOLID STATE: 0.005%, VACUUM TUBE: 0.8%

S/N ratio (IHF-A) SOLID STATE: 115dB, VACUUM TUBE: 105dB

Vacuum tubes ECC82×1

Power supply 230V~(50Hz) / 115V~(60Hz)

Power consumption 16W (at standby)

External dimensions 440(W) x 167(H) x 286(D) mm

front side knob of 4mm and rear side terminal

of 8mm included in depth

Net weight 10.8kg(main unit)
