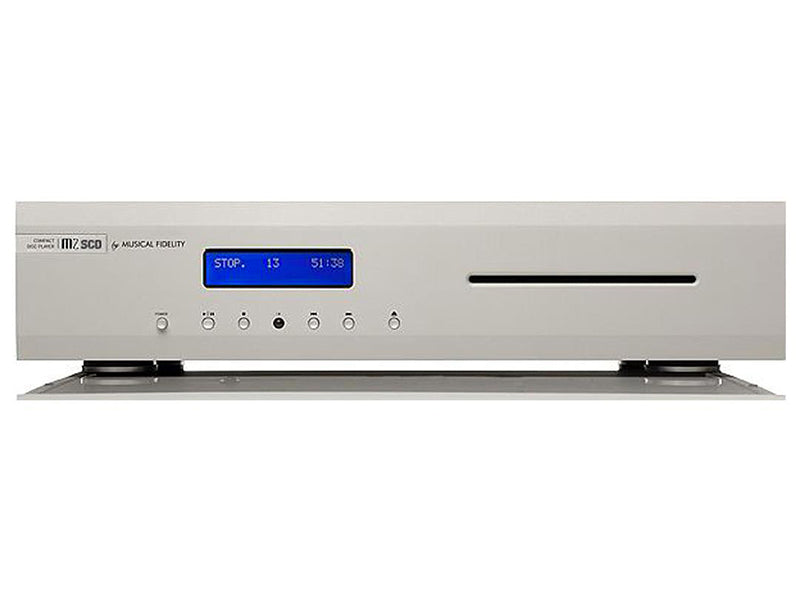

M2si - Specifications

Output

Output impedance: 50 ohms

Output, digital 0dB level: RCA output - 2.2V r.m.s. nominal

DAC

DAC circuit: 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling

Total correlated jitter: <135 picoseconds peak to peak

Linearity: <0.1dB down to -96dB

Frequency response: 10Hz to 20 kHz -0.2dB max.

Channel separation: >105dB 20 Hz to 20 kHz

Signal-to-noise ratio: >117dB “a”- wtd.

Total harmonic distortion: <0.003% 10Hz to 20 kHz

Connections

Line level outputs: 1 pair line level RCA connectors, left and right outputs

Digital outputs: 1 RCA coaxial connector SPDIF, 1 TOSLINK optical connector

Power requirement

Mains voltages 115/230VAC 50/60Hz (factory pre-set)

100VAC 50/60Hz (alternative)

Consumption 20 Watts maximum

Weight

Unit only, unboxed 6.65 kg (14⅔ lbs)

In shipping carton 10.5 kg (23 lbs)

Dimensions

Wide 440 mm (17⅓”)

High, including feet 100 mm (4”)

Deep (front to back) including terminals 375 mm (14¾”)
