MX-HPA - Specifications

Output

Power 1.8 Watts per channel into 8 Ohms (27dBW)

Maximum output voltage 19 Volts RMS, 20Hz to 20 kHz

Onset of clipping (54 Volts peak-to-peak) balanced

Line input

THD+N >0.005% typical, 20Hz to 20 kHz

Signal / noise ratio >120dB ‘A’-weighted

Input impedance 50k Ohms

Frequency response +0, –0.1dB, 10Hz to 20 kHz

Gain, LO position (volume max) 18db (8x)

Gain, HI position (volume max) 24dB (15x)

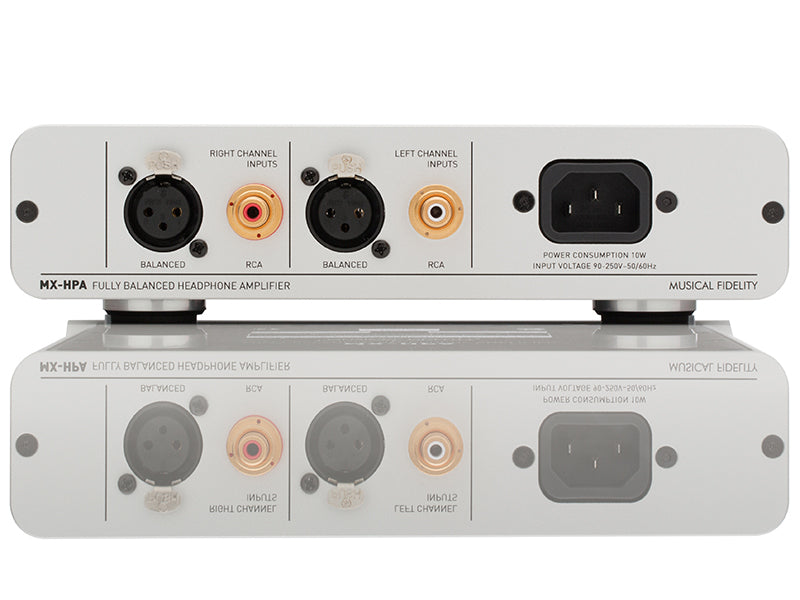

Connections

Line level inputs

1 pair line level XLR (balanced) connectors

1 pairs line level RCA connectors

Headphone outputs

1 pair 3-pin XLR/¼” stereo Jack combined sockets

Power requirement

Mains voltages 90-250VAC 50-60Hz universal worldwide supply

Consumption >0.25 Watts standby (Orange LED lit)

15 Watts maximum (Blue LED lit, full power output)

General

Dimensions - WxHxD (mm): 220 (82/3”) x 53 (2”) x 240 mm (9½”)

Weight (unpacked / packed): 2.2 kg (5 lbs) / 3.7 kg (8¼ lbs)
