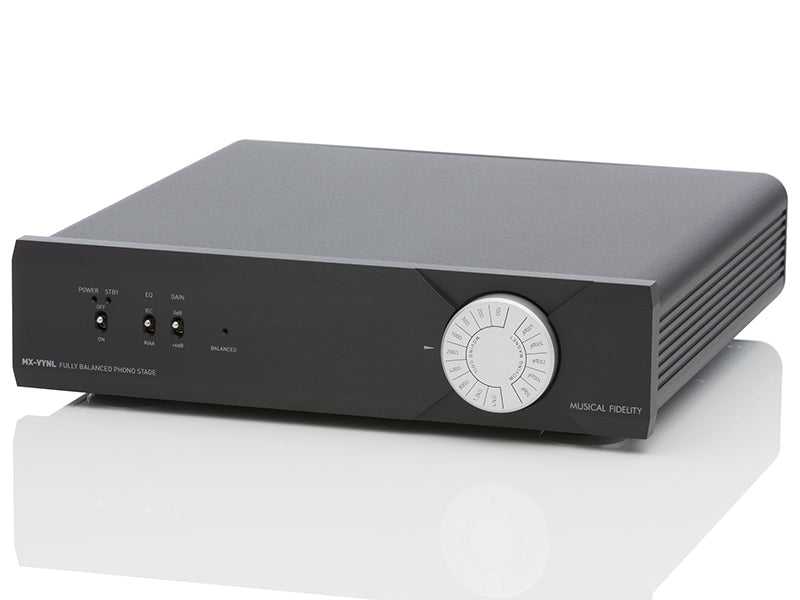

MX-VYNL - Specifications

Output

4 Volts RMS single ended from RCA sockets

8 Volts RMS balanced from XLR sockets

Performance

Frequency response: RIAA ±0.1dB IEC ±0.1dB

MM:

Channel separation: < -86dB

SNR: >101dB

THD: < 0.007%

XLR input: 5mV / 2.5mV selectable

70mV max (23dB headroom)

MC:

Channel separation: < -83dB

SNR:>98dB

THD: < 0.01%

XLR input: 0.8mV / 0.4mV selectable, 12mV max (24dB headroom)

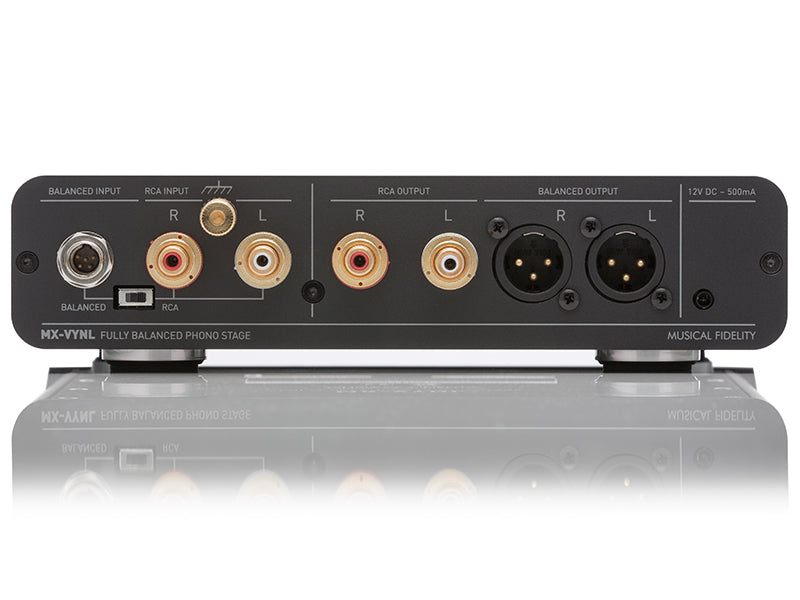

Inputs

Balanced Mini-XLR

RCA 1 pair RCA sockets

Outputs

Balanced XLR male sockets EIA Standard RS-297-A

RCA 1 pair RCA sockets

Power

Connector: 1.3mm pin DC power jack

Outboard power supply: 12V/500mA DC

Mains voltages 100-240VAC 50-60Hz universal worldwide supply

Consumption < 8 watts

Weight

Weight (unpacked / packed): 1.9Kg / 2.4 Kg

Dimensions

Width 220 mm (8⅔”)

Height (including feet) 53 mm (2”)

Depth (front to back) 215 mm (8½”)

Included accessories

Mains adaptor

Manual
