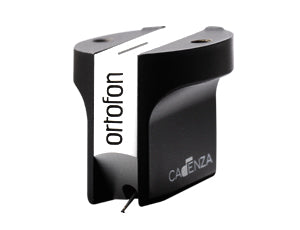

Ortofon Cadenza Mono - the true Mono cartridge The Cadenza Mono model is made with a nude fine line stylus and a cylindrical aluminium cantilever. For easy use the pins are connected so you get the same signal from both pairs of connecting pins. The stylus radius is r/R 8/40 µm. The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate. Find your old records as well as new micro groove mono records and experience the Cadenza Mono! We offer Special Repair Service for Cadenza MONO » Technical data Output voltage at 1 kHz 5 cm/sec 0,14 mV Frequency range at -3 dB 20 Hz - 50 kHz Frequency response 20 Hz - 20 kHz +3/-1 Tracking ability at 315 Hz at recommended tracking force *) 70 μm Compliance, dynamic, lateral 12 μm/mN Stylus type Nude Fine Line on Alu cantilever Stylus tip radius r/R 8/40 Tracking force range 2,2-2,7 g (22-27 mN) Tracking force recommended 2,5 g (25 mN) Tracking angle 20º Internal impedance, DC resistance 5 Ohm Recommended load impedance 50-500 Ohm Cartridge body material Stainless steel Aluminium Cartridge colour Natural/Black Cartridge weight 10,7 g
