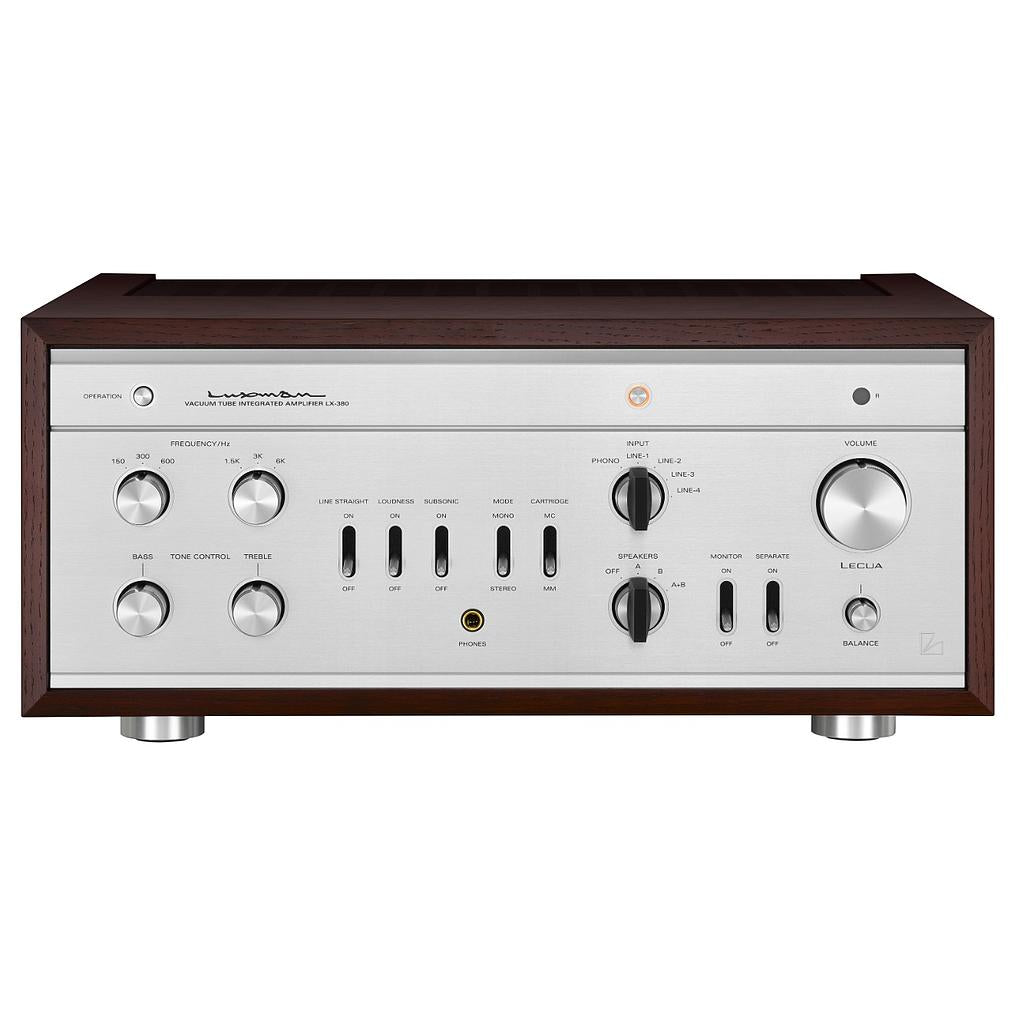

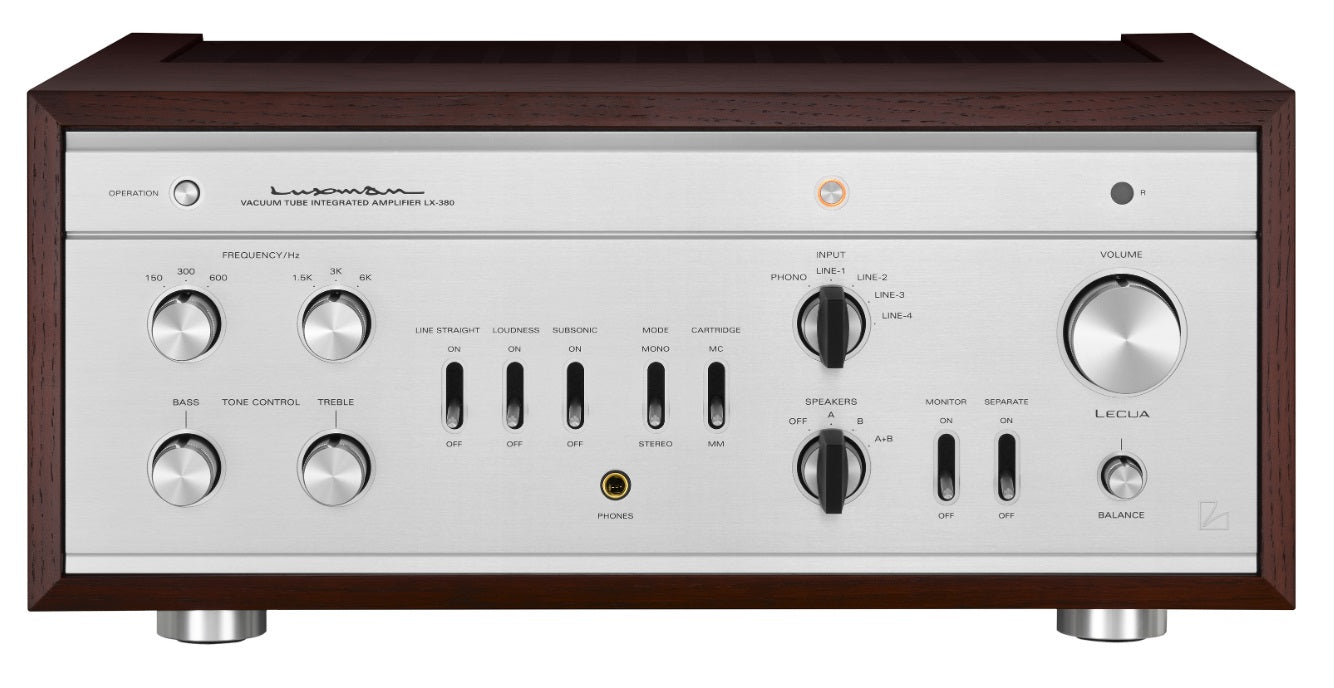

Amplificatore integrato stereo Hi-End a valvole 6L6GC x 4, potenza 18W x 2 su 8 ohm, sensibilità ingresso Phono MM/MC 3mV/0,38mV, Linea 180mV controllo volume LECUA, uscita pre out, rapporto S/R > 95dB (Linea) risposta in frequenza Linea 20Hz-80kHz (+- 0,5dB)/ Phono 20Hz-80kHz (+0, -3.0dB) dimensioni (WxHxD) 440x197x403mm, peso 17,6 kg. Finitura Silver

Spec

Rated output 20W + 20W (6Ω), 18W + 18W (8Ω), 14W + 14W (4Ω)

Input sensitivity/input impedance (PRE OUT :1V) PHONO (MM): 3.0mV/47kΩ

PHONO (MC): 0.38mV/100Ω

LINE: 180mV/47kΩ, MAIN-IN: 690mV/100kΩ

Output voltage RECOUT: 180mV, PRE OUT: 1V

Frequency response PHONO: 20Hz to 20kHz (±0.5dB)

LINE: 20Hz to 80kHz (+0, -3.0dB)

Total harmonic distortion 1% or less (6Ω, 1kHz)

S/N ratio (IHF-A) PHONO (MM): 84dB or more

PHONO (MC): 67dB or more

LINE: 95dB or more

Volume adjustment LECUA

Circuit Driver: Mullard, Output: beam tetrode connection

Vacuum tubes 6L6GC×4, ECC82×3

Output configuration Push-pull

Max. amount of tone control ±8dB, turnover frequency switch-over system

BASS: 150 / 300 / 600Hz, TREBLE: 1.5k / 3k / 6kHz

Power supply 230V~(50Hz) / 115V~(60Hz)

Power consumption 127W

External dimensions 440(W) x 197(H) x 403(D) mm

front side knob of 25mm and rear side terminal

of 28mm included in depth

Net weight 17.6kg (main unit)

Accessories Remote controller (RA-25)

Power cable

Speaker terminal Supported Y-lug terminal dimension Width of part a: 15mm or less

Width of part b: 8mm or more

* Connection may not be performed

depending on the shape of the

Y-lug terminal.
