Absolute High-End

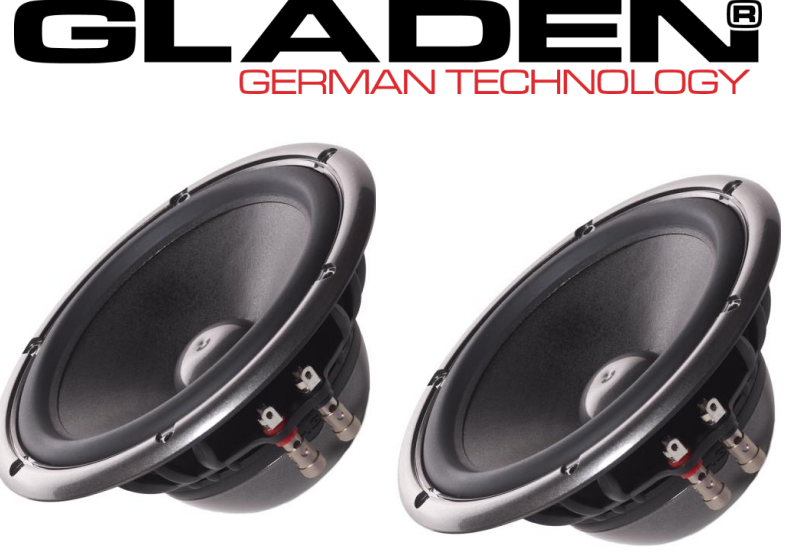

165 mm Phase Plug mid-woofer

3 ohm impedance

(no anello – no griglie)

Name HG-165AeroPP-3

DC resistance Rdc 2,7 Ω

Nominal impedance ZN 3 Ω

Resonance frequency fs 49,5 HZ

Voice coil diameter 37 mm

Mechanical Q factor Qms 7,3

Electrical Q factor Qes 0,6

Total Q factor Qts 0,55

Moving mass Mms 14 g

Effective piston area Sd 135 cm2

Mechanical resistance Rms 0,63 Kg/s

Compliance Cms 0,71mm/N

Force factor BL 4,5 Tm

Equivalent air volume Vas 18 dm3

Efficiency η 0,35 %

SPL 2,83V/1m 92,2 dB
